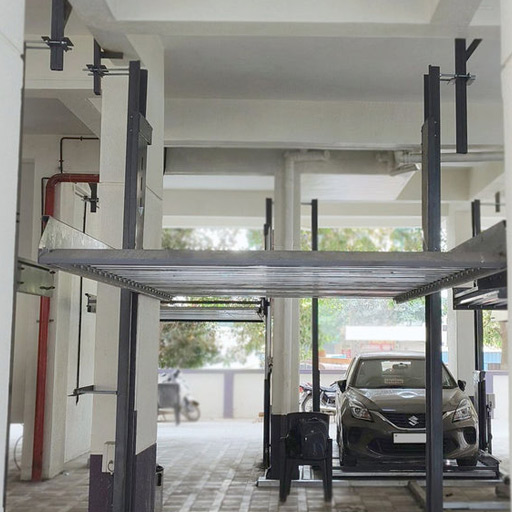

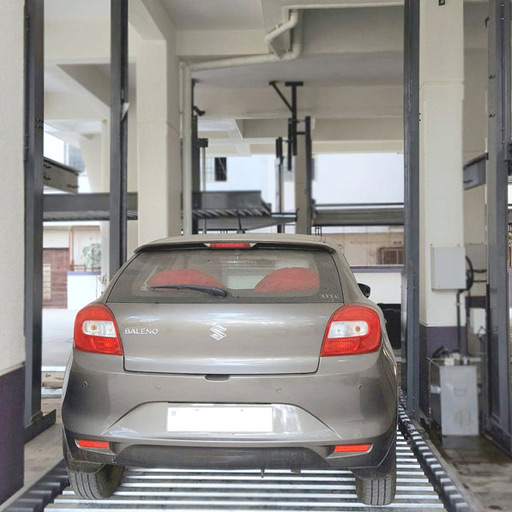

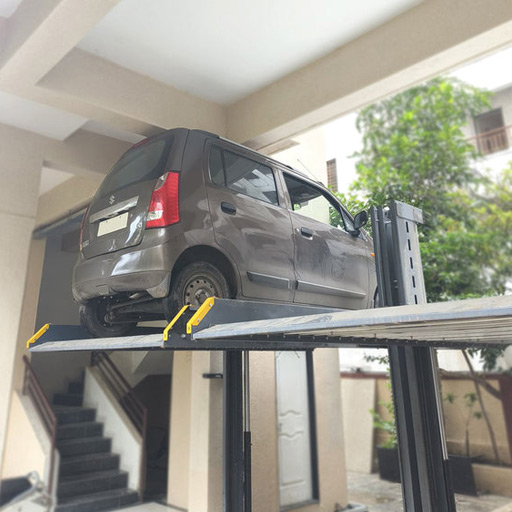

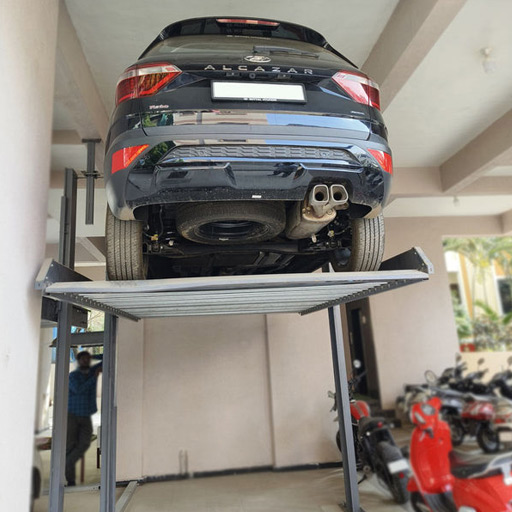

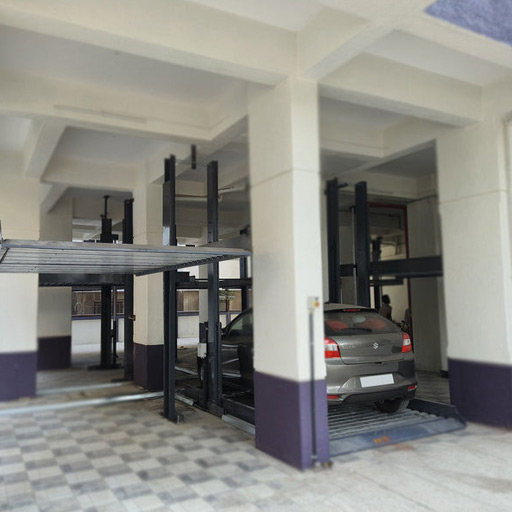

2 Pole Hydraulic Stack Car Parking

2 Pole Hydraulic Stack Car Parking (Lifting Load 2000 Kgs Max.)

Material Supply: 1 Pallet with one power pack, suitable for 1+1 Mechanical car park

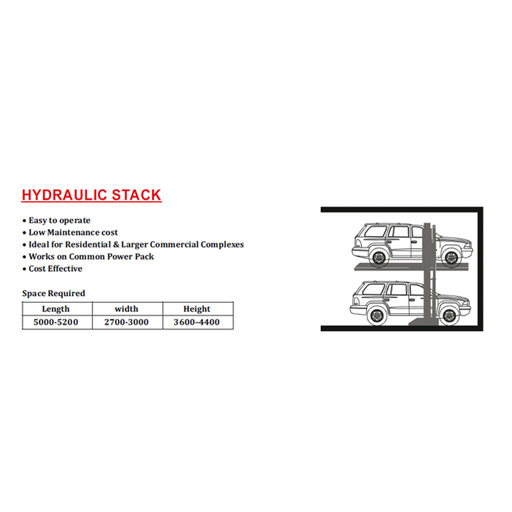

Space required: 5 M L  X 2.4 W (min) X 3.9 H (min)
Weight Lifting Capacity: Maximum 2 Tons (2000 Kgs).

FEATURES:

- Sedan or SUV or a Combination of both can be Parked.

- Where space is a constraint, we can go with Sharing Pole, so that more cars can be accommodated.

- Individual Power pack for every system, so that in the event of any defect only one system will be out of order and rest can perform.

- Lifting is by Chain and not by Rope.

- Hydraulically operated and not Mechanical, hence less wear & Tear and Maintenance.

- Easy Installation (within couple of hours it can be done).

- Key pendant is provided for safety, so that system is not misused.

- All safety features like Mechanical, Electrical Limit Switch, Sensor are inbuilt in the System.

- Multiple locking positions so that different Car heights can be accommodated without hitting the Roof while lifting.

- Parking platform is flexible so that while fixing or removing it is very easy and not Welded.

- Parking platform is fully Galvanised so that system can be installed in Open Area also.

- If client requires entire system can be Galvanised if the Parking lot is to be near to the Coastal area.

- Minimal running cost per cycle

INSTALLATION of above system:

If you wish us to install this system please buy installation charges (sold separately) by clocking on below links. Kindly note these charges mentioned are for a single system hence select the same quantity as of your car parking systems & also we have separated Installation charges based upon location. So select suitable location in case of any doubts please contact us before purchase.

Installation Charges WITHIN PUNE - https://www.hub4machines.com/products/installation-charges-for-stack-car-parking-within-pune

Installation Charges WITHIN MAHARASHTRA -https://www.hub4machines.com/products/installation-charges-for-stack-car-parking-within-maharashtra

Installation Charges OUT OF MAHARASHTRA WITHIN 1500 Km from PUNE - https://www.hub4machines.com/products/installation-charges-for-stack-car-parking-out-of-maharashtra-within-1500-km-from-pune

1. Prices are inclusive of GST. GST bill will be issued at time of dispatch.
2. At this moment we do not have facility to obtain GST details at time of order placement on the website, however, our team will contact before final bill generation to get the GST details.
3. Systems Ships within 6-8 Weeks. (Depends upon Stocks, Delivery may be offered earlier too & For larger quantities confirm delivery schedule with us before placing  the order)
4. ll Prices are Ex-Pune office.
5. We will dispatch material thru Air / Road by transport suitable to customer’s choice, on To-pay basis.

Contact support@hub4machines.com for any queries
